M5 panel front lock connector Female

part number: admin

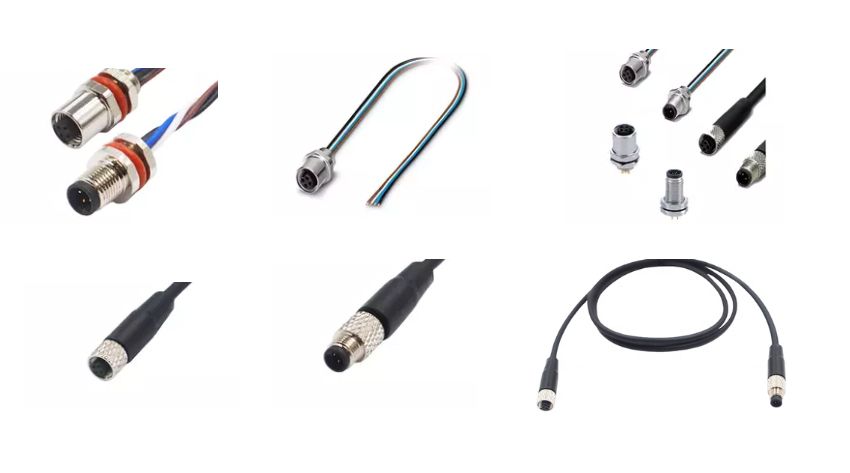

The waterproof connecting line can be customized with M5 panel connector and PCB end belt line. The sensor connecting harness is customized with M5 circular waterproof sensor connector. The industrial grade self-designed automobile sensor brake, actuator

Consult now

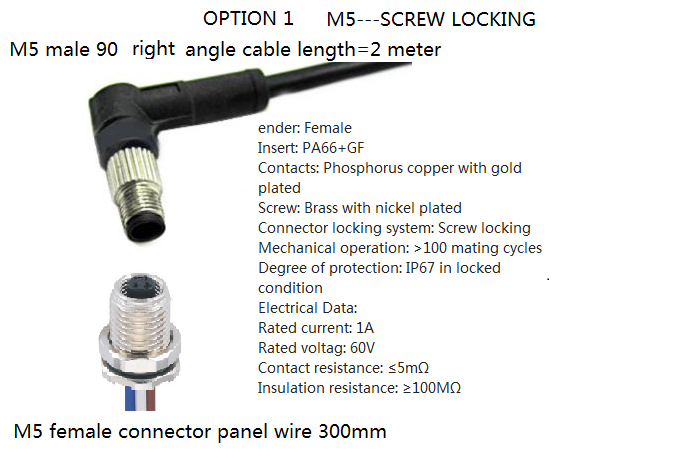

Solder wire 4 pin m5 female pcb connector

M5 Circular connector according to IEC 61076-2-101
M5 circular connector with M5*1.0 screw locking
Equivalent to Binder, Phoenix, Lumburger automation
Waterproof rating is IP67/IP68, protected from dust and water during immersion, resistant to many oils and chemical

Generally Description:Connector Series: M5 Standard: IEC 61076-2-104

Coding: A

Gender:Female
Connector Design: Panel mount
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68

Normal Temperature: -10℃~+80℃

Material:

Connector Body: TPU
Female Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM

Glue: Black epoxy resin

Wire Jacket: PVC

Wire length: Customized

Electrical data:

Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
Rated Current: 3A~1A
Rated Voltage: 60V~30V
