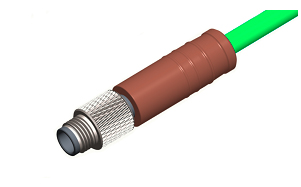

M5 waterproof cable

part number: M5-XX-M

M5 miniature sensor connector/connection line, widely used in automobile sensors, industrial automation sensors, with water-proof, oil-resistant, hydrolysis-resistant, threaded locking structure, reliable and stable performance

Consult now

M5 male plug molded cable is mainly used to connect host and various sensors such as temperature sensor, heat-sensitive sensor, photosensitive sensor, photoelectric sensor, acoustic sensor etc.

The hole place arranges(Comply with the needle direction)


Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ3.3mm


Specification

Number of Contacts 3, 4

Rated Voltage 60V

Rated Current 1A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 0.48±0.03

Wire Gauge 26AWG

Cable Jacket PVC or PUR

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated
